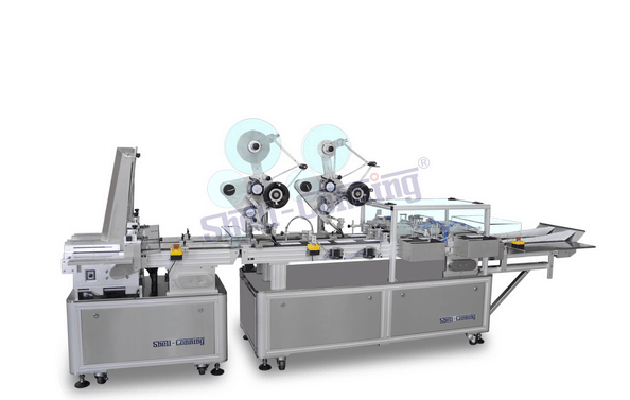

Especially for flat material automatic data labeling and design, suitable for unformed carton, brochures, cards and other materials. Elaborate distributor of different size and thickness of materials have risen to the occasion, vacuum conveying belts to ensure stable operation and accurate labeling. Many options, such as synchronization code, labeling to detect and eliminate such as the thin material can, for different application requirements to provide solutions. Selecting synchronized heat transfer print engine, instant printing paste variable data and the code, especially in electronic supervision code used for real-time online Fu code requirements.

1 vacuum conveyor belt, the material is automatically adsorbed on the conveyor belt, to avoid the material displacement problem, so as to achieve a stable, accurate paging function 2 it can print the serial number, date, time, fixed data and so on, can also choose automatic compensation standard, meet the production line and the special needs of 3 optional printing equipment: Zebra PAX, 105SL print engine; all the major brands of inkjet printing, 4 optional print device leakage detecting and eliminating printing / printing system, ensure the accurate print content 5 servo motor driven marking device ensure user-friendly touch screen, speed and accuracy of labeling 6 can store 50 sets of labeling parameters is simple, intuitive, rich online help function using 7 world-class electrical components and all materials comply with GMP standards, to ensure the lasting stability

Material size: width 60-180mm; length 60-200mm; thickness 0.3-8mm label size: 10-90 mm labeling speed: 60-220 / minutes (depending on the materials and label size) labeling accuracy: 1.5mm (not including materials and label error) power supply and power: 220VAC 5% 50Hz 1.5Kw machine size (L) 3000 x (W) 650 x (H) 1500 mm
